LED Display Control System Selection Guide

Selecting the Right LED Display Control System

The control system of an LED display is crucial for ensuring performance and display effects. This article will guide you through the process of selecting the appropriate sending and receiving cards based on project requirements.

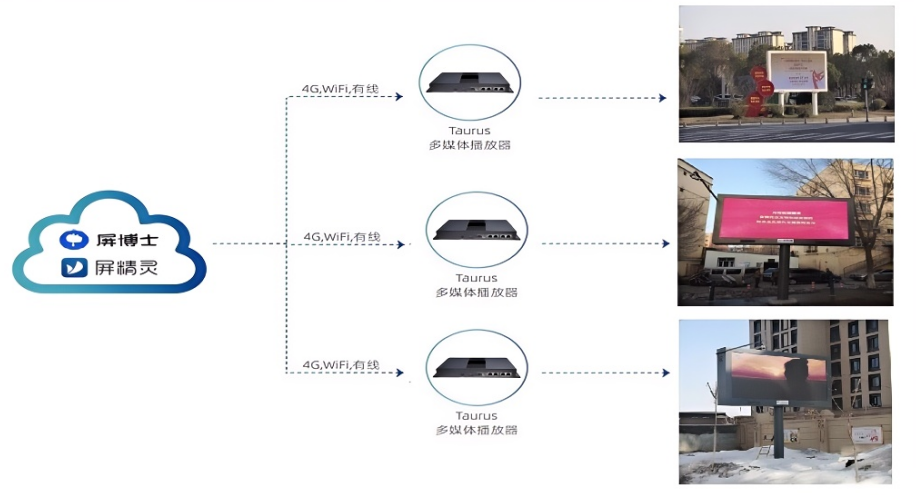

Fixed installation

Rental

Steps for Selecting Sending Cards:

1. Determine the Installation Scenario: First, distinguish whether your LED display is for permanent installation or temporary rental. This will affect the choice of sending cards, as different scenarios have different requirements for stability and portability.
2.Confirm Screen Resolution: The resolution and pixel capacity of the sending card must meet the needs of the display. Ensure that the resolution of the sending card is consistent with the input signal source to avoid image distortion.
3. Choose a Reputable Manufacturer: Consider selecting well-known brands such as Novastar, Colorlight, Brompton, etc., as their sending cards are known for stable performance and comprehensive technical support.
4. Special Configurations: For XR and VP virtual production technologies, the sending cards need to have superior video processing capabilities, multifunctional dynamic adjustment adaptability, and low latency with high frame rates.

Steps for Selecting Receiving Cards:

1. Determine Interface Types: Based on the box HUB, confirm the interface model of the receiving card. Common interfaces include HUB75, Ethernet port, power supply port, USB interface, and RJ45 interface.
2. Determine Display Unit and Receiving Card Load Resolution: Ensure the load capacity of the receiving card meets the refresh rate and display effects of the screen.
3.Calculate the Number of Receiving Cards: Based on the resolution of the module, calculate the number of receiving cards to ensure the refresh rate and display effects of the screen.

Compatibility Note: Sending and receiving cards must come from the same control system manufacturer to ensure hardware and software compatibility.
